Dimensions: 25 in × 9.5 in × 15 in
Weight: 53 lb
This is a Cheaper alternative. However, Hypertherm plasma cutters will give you best cutting quality.
Features & Benefits:
- Comes with CNC torch (Hand torch not included)
- Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Commercial class, 60% Duty cycle at 60 amps for CNC use
- Clean, smooth cuts with the genuine iPTM 60 CNC torch
- Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
- Pilot arc improves performance and cutting on dirty, painted, or rusted metals
- 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear

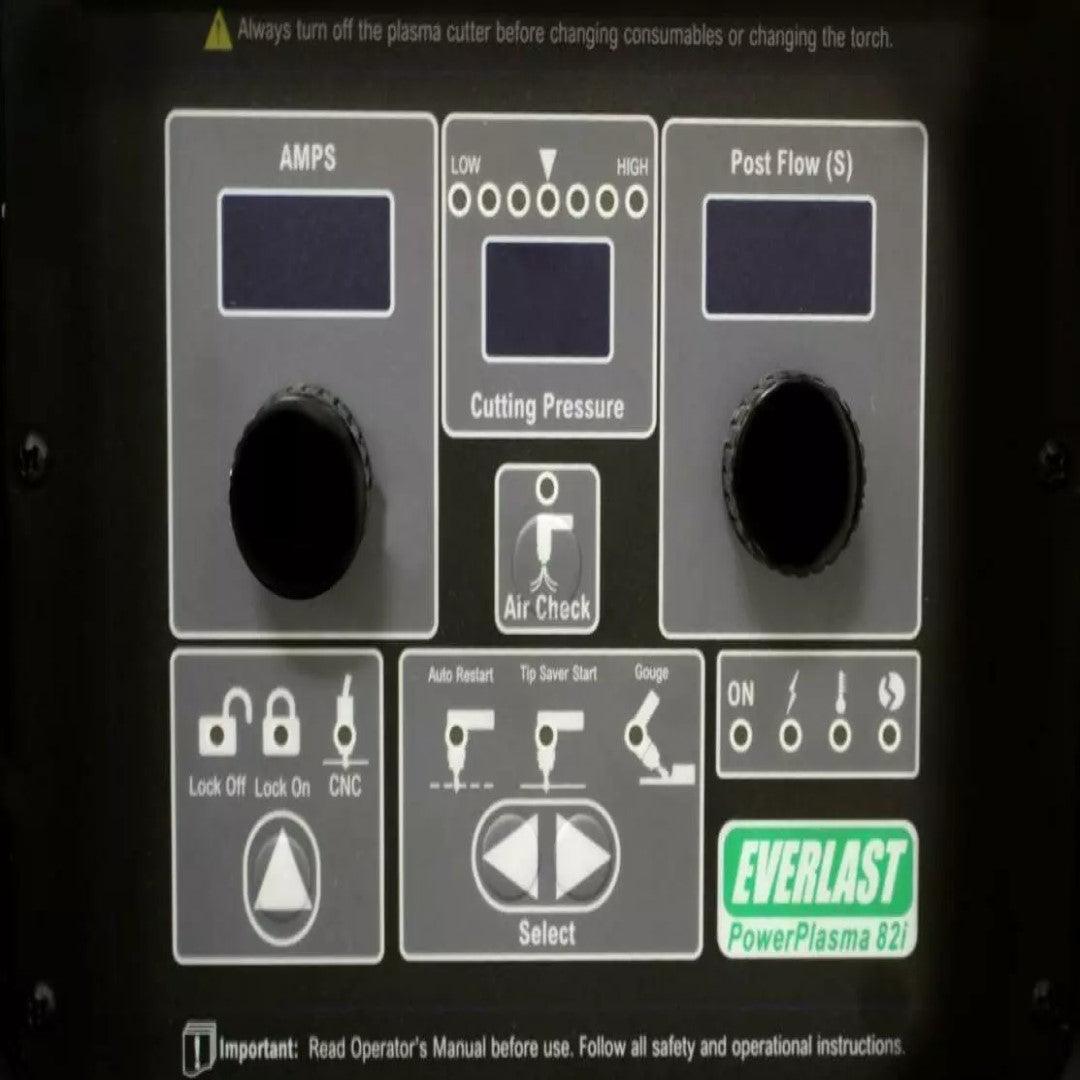

- Front air pressure gauge allows quick verification of air pressure
- Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
- Adjustable postflow timer for maximum consumable life
- IGBT components improve reliability and performance while reducing overall weight

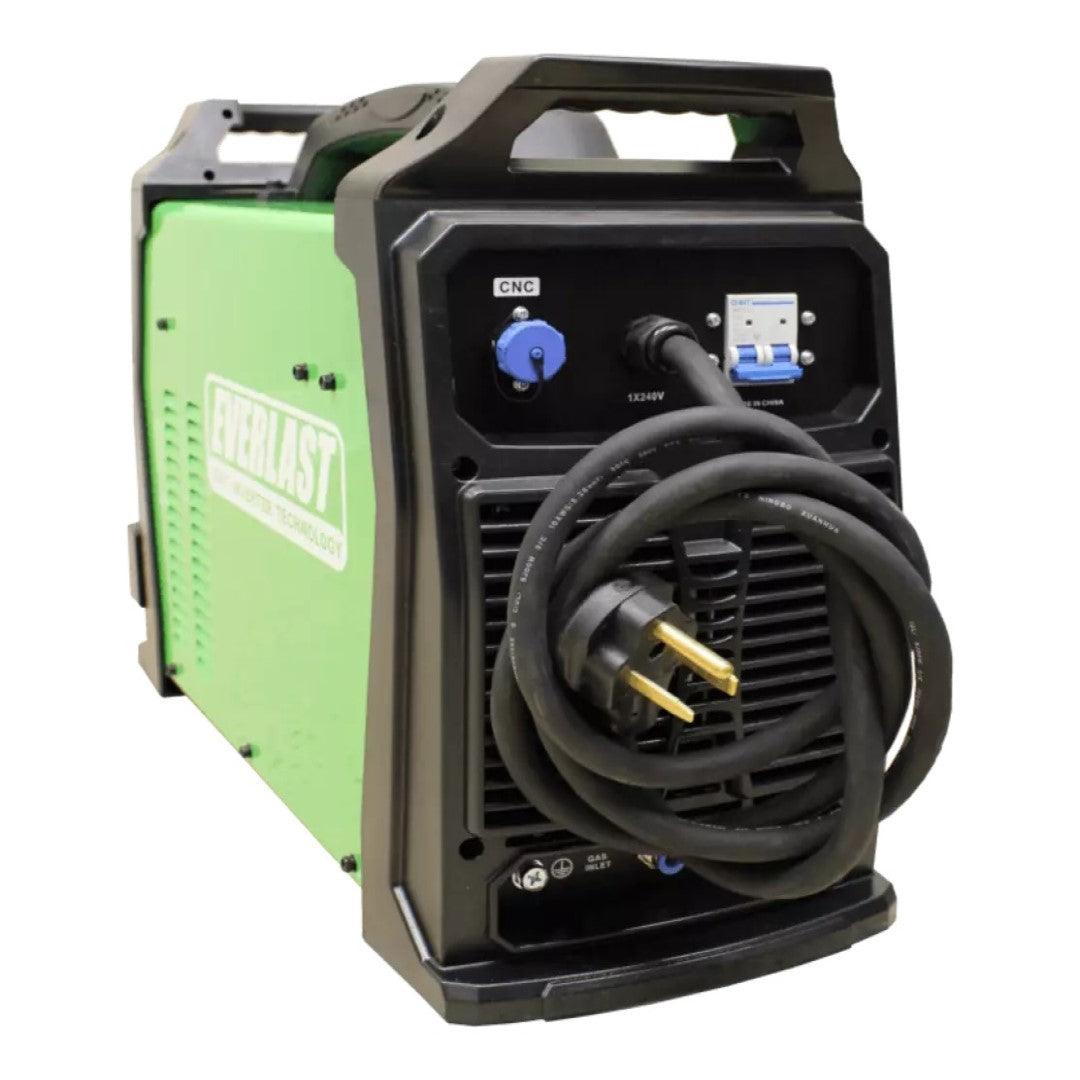

- CNC socket for CNC use on plasma tables with included machine torch
- Suitable for use with 11,000 W "clean power" generators.

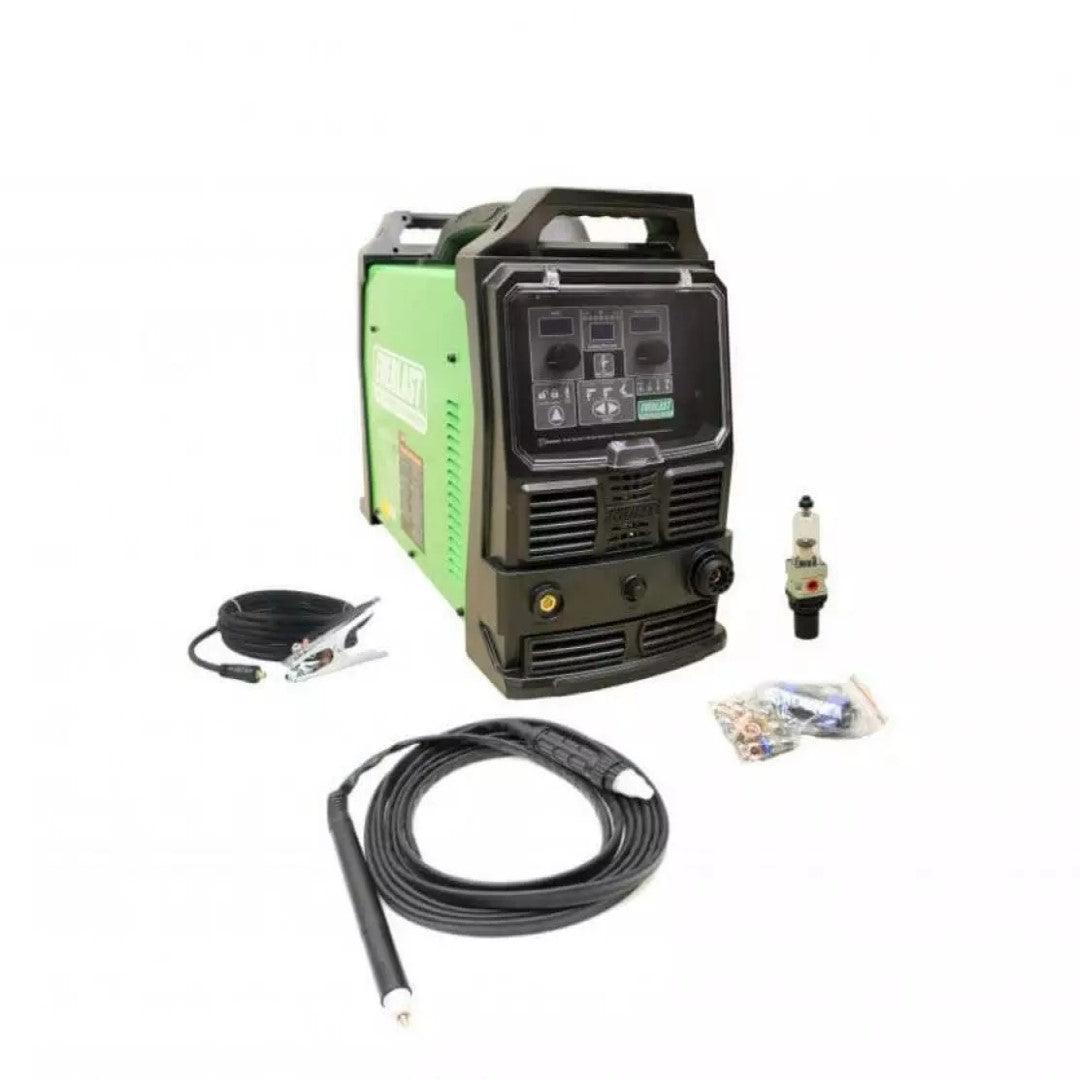

What's Included:
- 25ft. Italian designed and patented iPT 60M CNC torch with Euro quick-connect central adapter
- Work clamp with 10ft cable and DINSE connector
- Air pressure regulator/water trap (Separate air dryer is required to reduce consumable wear and prevent torch damage)
- Consumable starter kit.
Tech Specs:
Type:
IGBT
Voltage/phase:
220/240 V 1 Phase
Output Amp/Volt Range:
20-60A; 88-104V
OCV:
240V
Max Inrush ( I1MAX ) Amps:
41A
Maximum Rated (I1EFF ) Input Amps:
32.4A
Duty Cycle At Rated Amps/Volts:
- 60% @ 60A/104V
- 100% @ 50A/100V
Arc Start Type:
Blow Back (Piston type)
PilotArc:
Yes
Torch Type:
Italian designed iPT 60 CNC machine torch
CNC Interface Port:
Yes
Adjustable Post Flow Timer:
Yes
Gouging:
Light to Medium
Recommended Cutting Air Pressure:
75 psi
Recommended Compressor Capacity:
6CFM @ 90 psi/ 30 gallon tank
OK-to-Cut Indicator/Low Air pressure safety:
Yes
- Regular price
- $1,600.00
- Sale price
- $1,400.00
Frequently Bought Together
-
Premier Plasma CNC FT4896 Series 4'x8' Turnkey System
Sale price From $6,875.00Regular price $8,175.00 -
Hypertherm Powermax 45 XP #088121 Machine System CPC 25' Leads
Sale price $2,900.00Regular price $3,100.00 -
Premier Plasma Router Kit for all tables.
Sale price From $395.00Regular price $500.00 -
Premier Plasma CNC ROTARY PIPE CUTTER ATTACHMENT.
Sale price $1,895.00Regular price $2,500.00
Total price
$13,465.00
$369.99
Product Description
Dimensions: 25 in × 9.5 in × 15 in
Weight: 53 lb
This is a Cheaper alternative. However, Hypertherm plasma cutters will give you best cutting quality.
Features & Benefits:
- Comes with CNC torch (Hand torch not included)
- Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Commercial class, 60% Duty cycle at 60 amps for CNC use
- Clean, smooth cuts with the genuine iPTM 60 CNC torch
- Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
- Pilot arc improves performance and cutting on dirty, painted, or rusted metals
- 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
- Front air pressure gauge allows quick verification of air pressure
- Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
- Adjustable postflow timer for maximum consumable life
- IGBT components improve reliability and performance while reducing overall weight
- CNC socket for CNC use on plasma tables with included machine torch
- Suitable for use with 11,000 W "clean power" generators.
What's Included:
- 25ft. Italian designed and patented iPT 60M CNC torch with Euro quick-connect central adapter
- Work clamp with 10ft cable and DINSE connector
- Air pressure regulator/water trap (Separate air dryer is required to reduce consumable wear and prevent torch damage)
- Consumable starter kit.
Tech Specs:
Type:
IGBT
Voltage/phase:
220/240 V 1 Phase
Output Amp/Volt Range:
20-60A; 88-104V
OCV:
240V
Max Inrush ( I1MAX ) Amps:
41A
Maximum Rated (I1EFF ) Input Amps:
32.4A
Duty Cycle At Rated Amps/Volts:
- 60% @ 60A/104V
- 100% @ 50A/100V
Arc Start Type:
Blow Back (Piston type)
PilotArc:
Yes
Torch Type:
Italian designed iPT 60 CNC machine torch
CNC Interface Port:
Yes
Adjustable Post Flow Timer:
Yes
Gouging:
Light to Medium
Recommended Cutting Air Pressure:
75 psi
Recommended Compressor Capacity:
6CFM @ 90 psi/ 30 gallon tank
OK-to-Cut Indicator/Low Air pressure safety:
Yes
