Dimensions: 25 in × 9.5 in × 15 in
Weight: 53 lb
This is a cheaper alternative. However, Hypertherm plasma cutters will give you best cutting quality.
Features & Benefits:
- Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Commercial/Industrial class, 60% Duty cycle at 80 amps
- Clean, smooth cuts and improved consumable life with the new Italian designed iPT 80 torch
- Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
- Pilot arc improves performance and cutting on dirty, painted, or rusted metals
- 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
- Adjustable post flow control up to 50 seconds to improve consumable and torch life

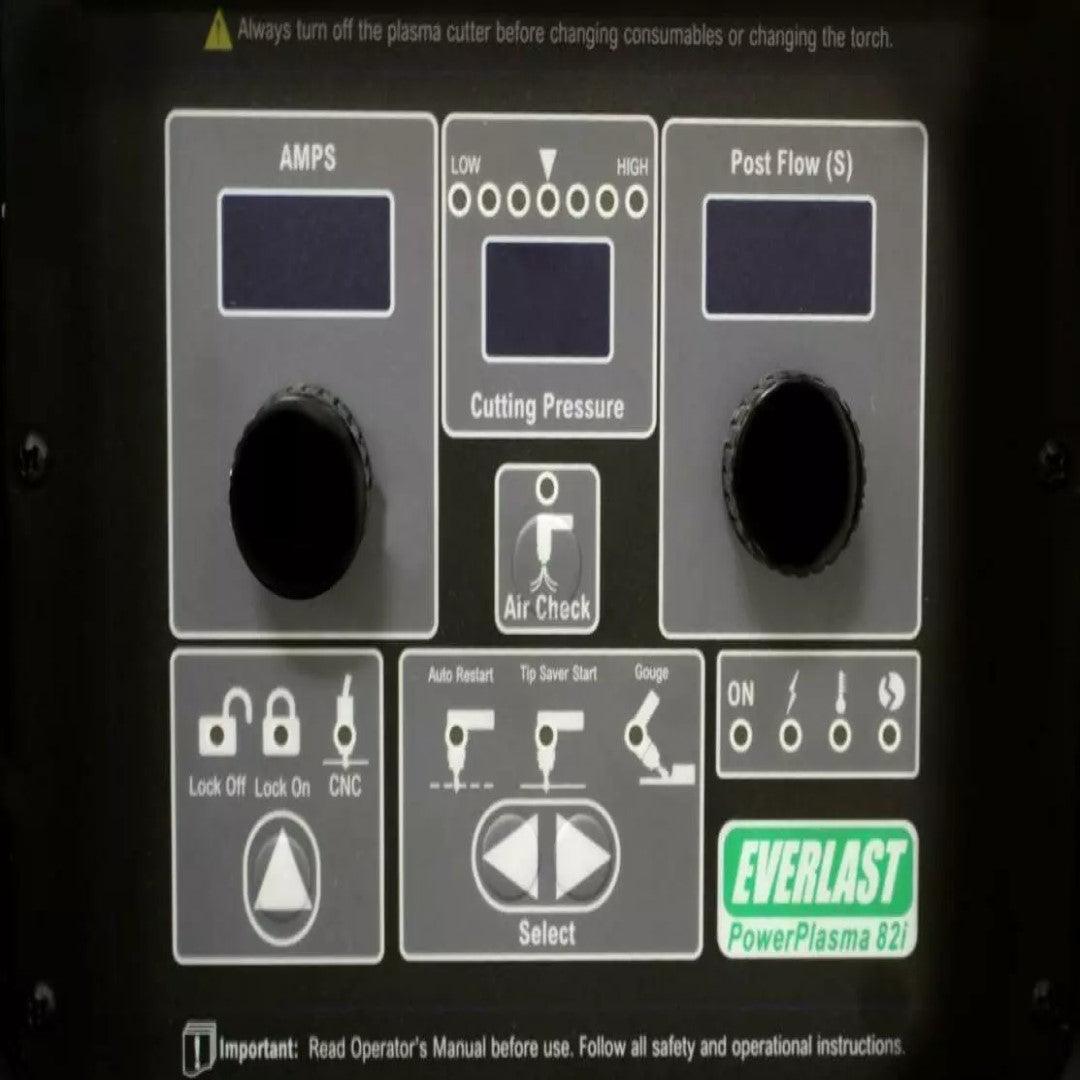

- Front air pressure gauge allows quick verification of air pressure
- Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
- IGBT modules improve reliability and performance while reducing overall weight

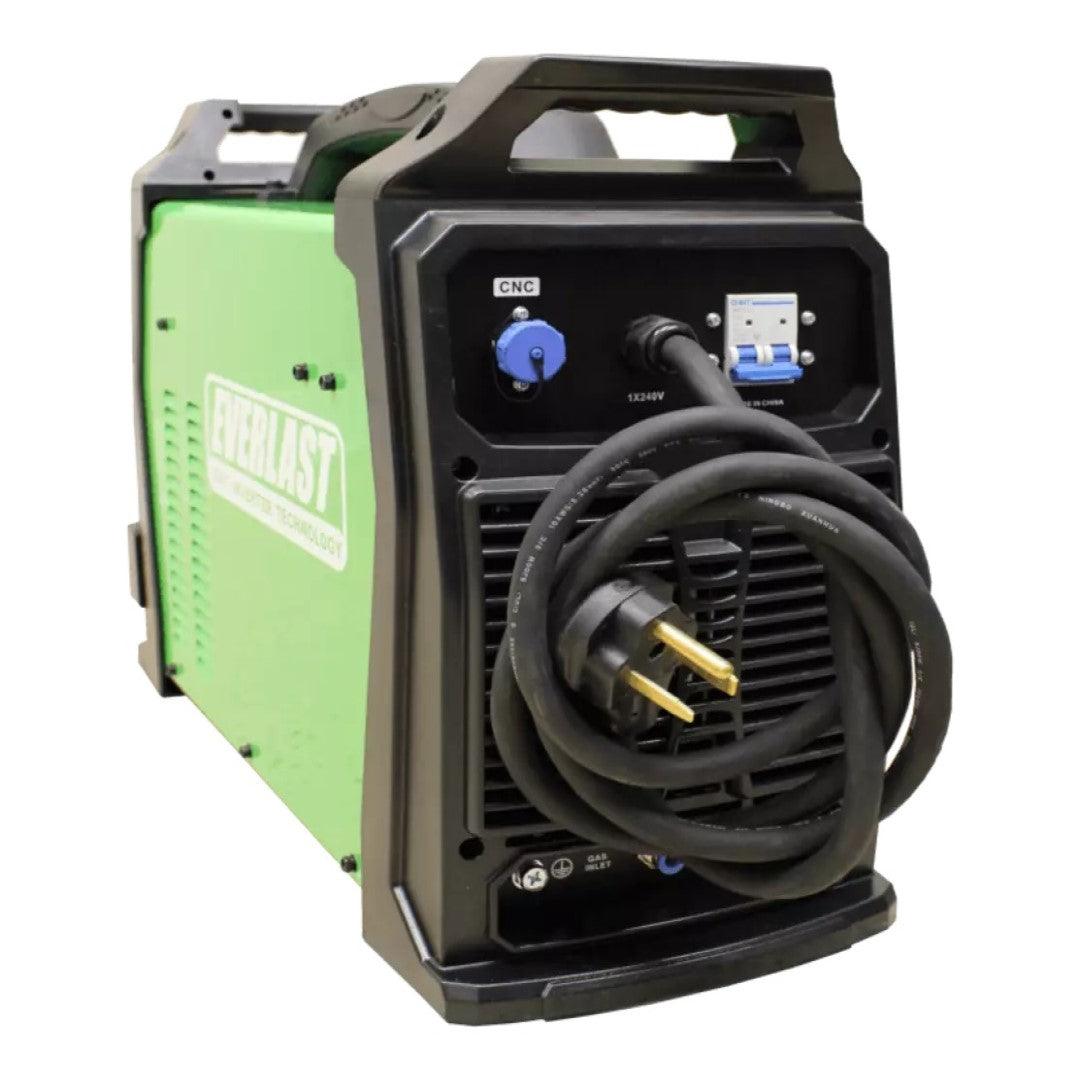

- CNC socket and CNC torch for plasma table use.

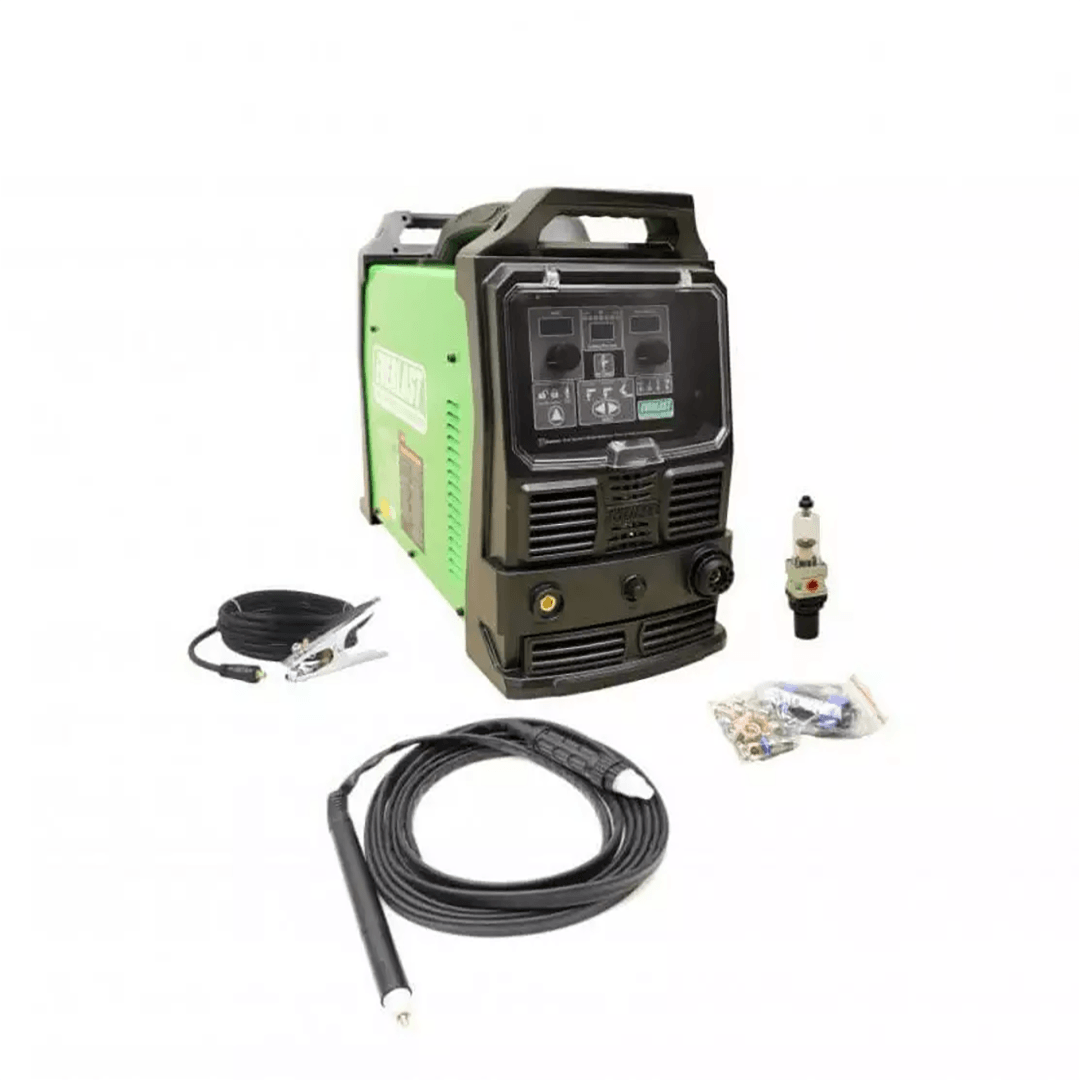

What's included:
- 25ft. Italian designed and patented iPT 80 CNC torch with Euro quick-connect central adapter
- Work clamp with 10ft. cable and DINSE connector
- Air pressure regulator/water trap (Separate air dryer is required to reduce consumable wear and prevent torch damage)
- Consumable starter kit
Tech Specs:
Max Inrush ( I1MAX ) Amps:
Maximum Rated (I1EFF ) Input Amps:
Duty Cycle At Rated Amps/Volts:
- 60% @ 80A/112V
- 100% @ 63A/105V
Torch Type:
Italian designed iPT 80 machine torch
(Hand torch not included)
Adjustable Post Flow Timer:
Recommended Cutting Air Pressure:
Recommended Compressor Capacity:
7CFM @ 90 psi/60 gallon tank
OK-to-Cut Indicator/Low Air pressure safety:
