Premier Plasma CNC

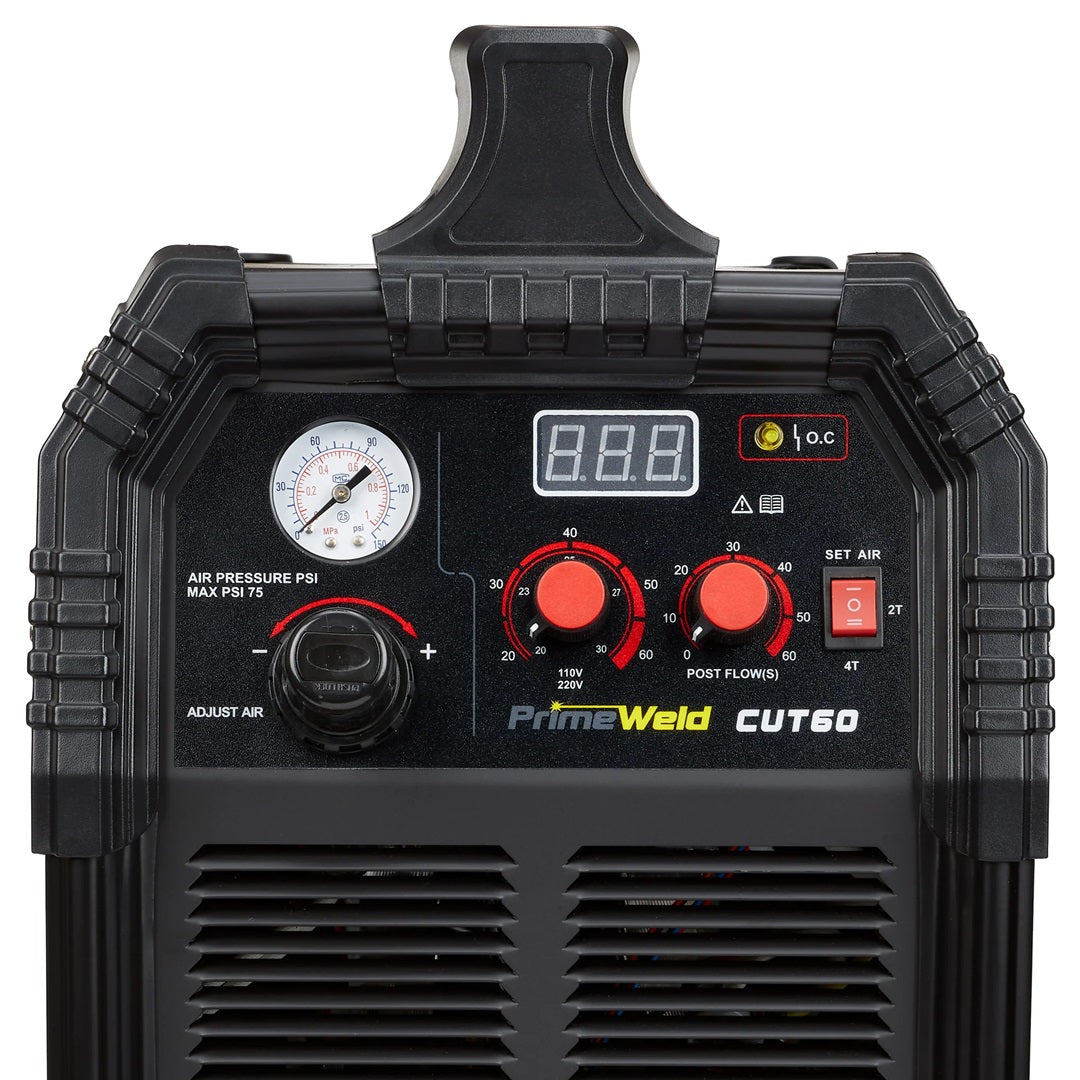

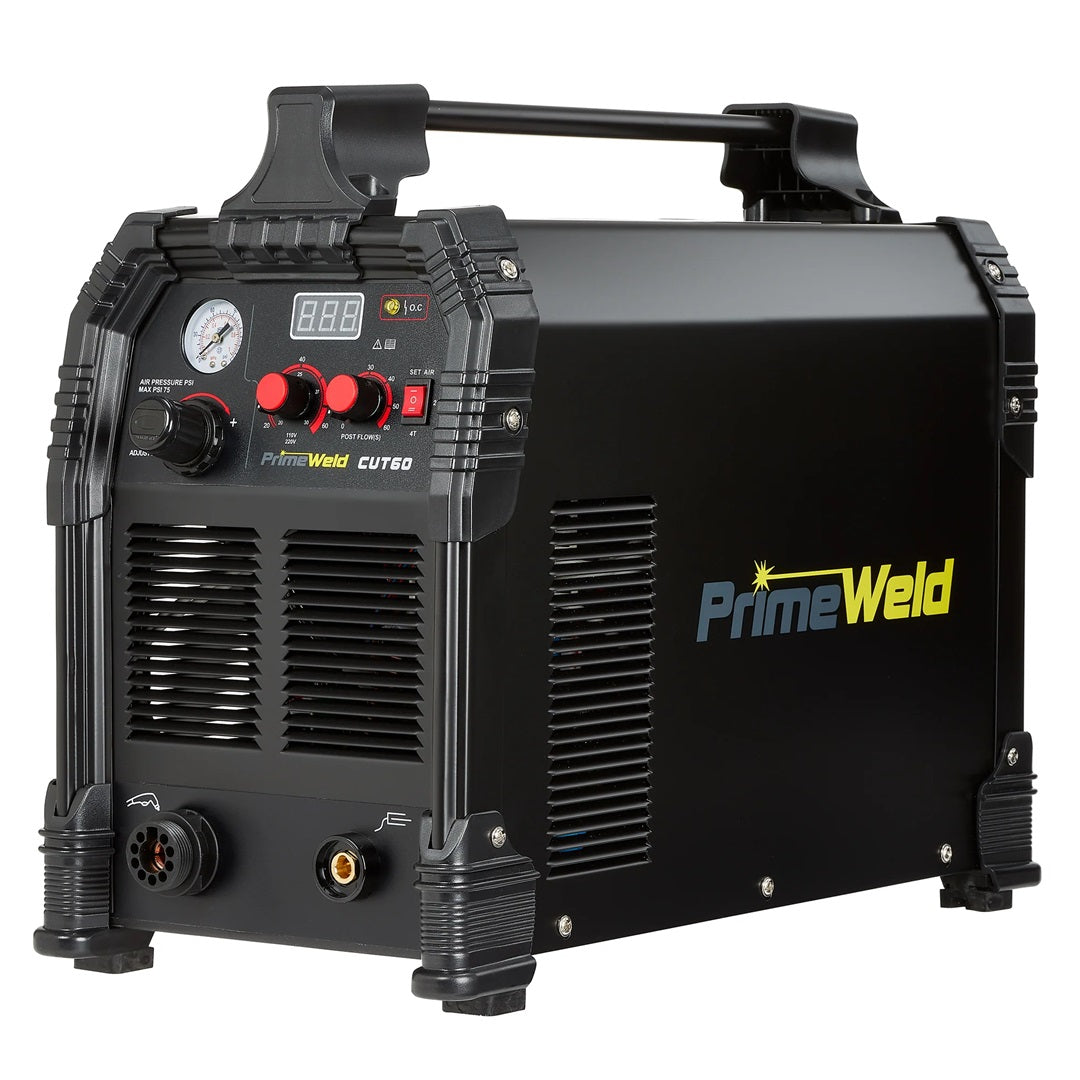

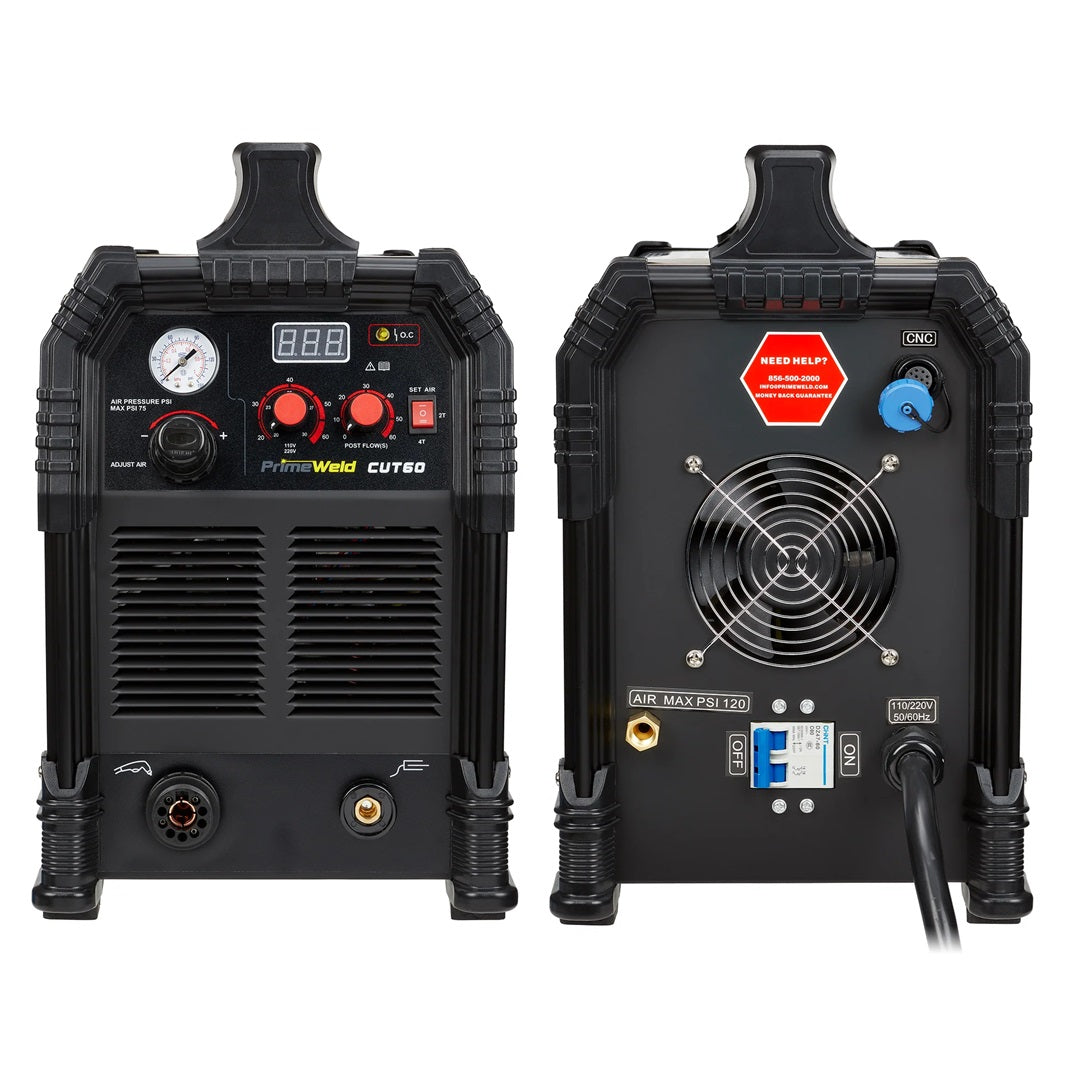

Prime Weld CUT60 Dual Voltage 110v/220v 60-Amp With CNC and hand held torch

$1,400.00
$1,200.00

SPECIFICATIONS:

BREAKER SIZE:

  • (120V) 30 amps
  • (240V) 50 amps

PLASMA OUTPUT IN AMPS:

  • Arc 120 volts: 20-30 amps
  • Arc 240 volts: 20-60 amps

DUTY CYCLE:

  • 60 percent @ max rating (120/240V)
  • 100 percent @ 23 amps (120V)
  • 100 percent @ 46 amps (240V)

AIR PRESSURE:

  • 40-75 PSI

AIRFLOW REQUIRED:

  • 5 CFM @ 80 PSI

AIR POSTFLOW:

  • 0 to 60 seconds

WEIGHT:

  • 34 pounds

SPECIFICATIONS TABLE

Parameter CUT60
Inverter type

MOSFET
Input voltage 1 phase AC, 110V +/- 15% 1 Phase AC, 220V +/- 15%
Input frequency 50/60Hz 50/60Hz

Input connector type

Pre-wired for NEMA 6-50P

*adapter provided for

NEMA 6-50 to NEMA 5-15

(for 220V or 110V operations)

5-15P NEMA

*See note

 6-50P NEMA
Rated input current

43

48.6
Rated output voltage

92

104
Rated output current

20-30

20-60
No-Load voltage 255V
Arcing start mode Non HF style non contact start
Duty cycle

60% @ 30 A/92 V

100% @ 23A/89.3 V

60% @ 60 A/104V

100% @ 46 A/98.4V
Recommended operating air pressure 55-75 psi
Nozzle inside hole (mm) 1.1mm
Cutting thickness

1/3" (8mm)

4/5" (20mm)
CNC port yes
2T/4T yes
Air post flow timer

0-60s adjustable
Set air yes
Efficiency >=80%
Power factor 0.73
Insulation grade F
Ingress protection rating (IP) IP21
Weight 15.20 kg / 33.51 lbs
Overall dimensions 520 x 265 x 420 mm / 20.47 x 10.43 x 16.54 inches

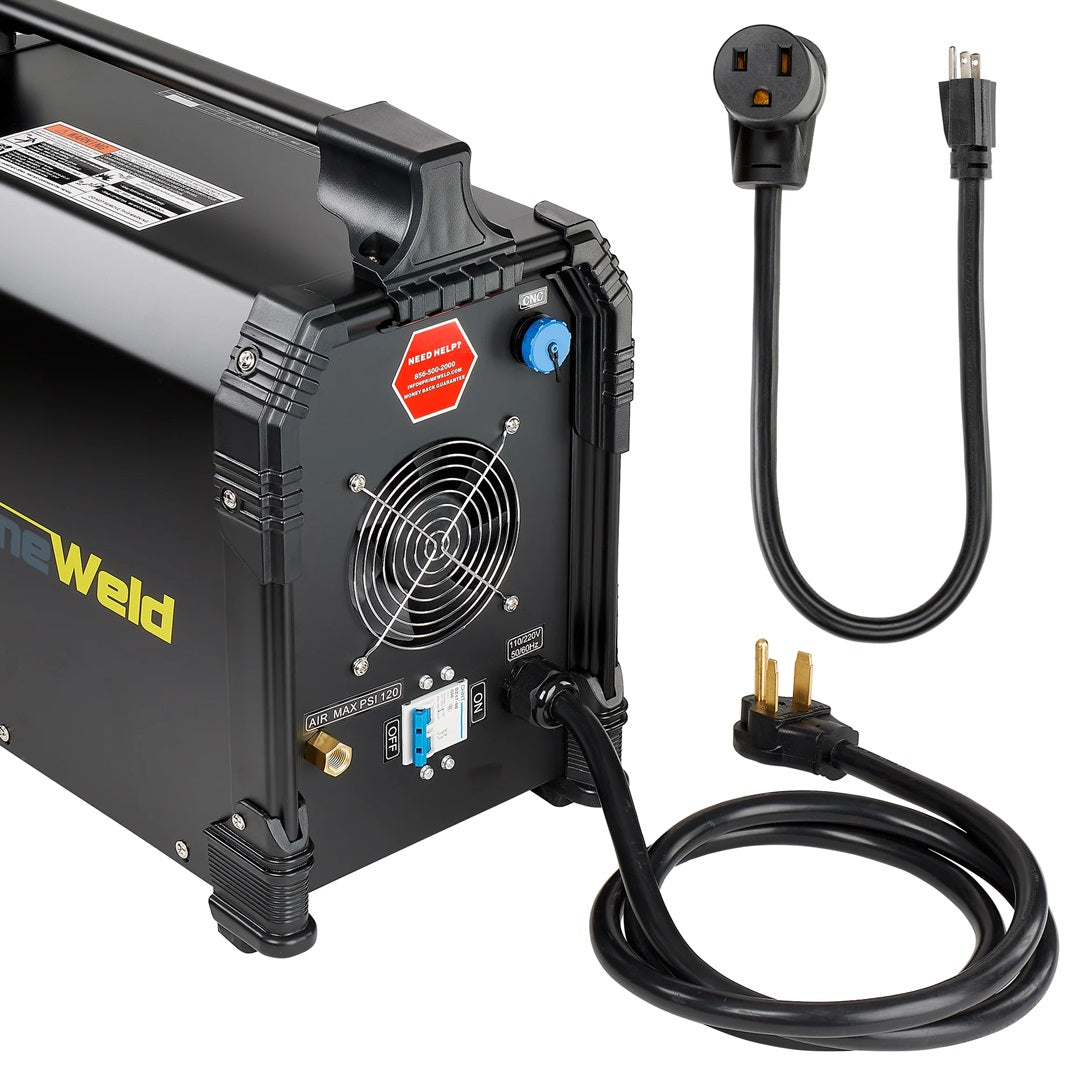

CUT60 Dual Voltage 60-Amp Plasma Cutter Comes With:

  • Ground Clamp with 12 feet cable
  • 220v to 110v power adapter
  • CNC and Handheld Torch
  • CNC Plug
  • Cutting torch IPT60
  • User's manual



This is the Cheaper option (Hypertherm is the industry standard), so Quality may be a bit lower.
$1,400.00
$1,200.00

Frequently Bought Together

Total price $13,050.00

Product Description

SPECIFICATIONS:

BREAKER SIZE:

  • (120V) 30 amps
  • (240V) 50 amps

PLASMA OUTPUT IN AMPS:

  • Arc 120 volts: 20-30 amps
  • Arc 240 volts: 20-60 amps

DUTY CYCLE:

  • 60 percent @ max rating (120/240V)
  • 100 percent @ 23 amps (120V)
  • 100 percent @ 46 amps (240V)

AIR PRESSURE:

  • 40-75 PSI

AIRFLOW REQUIRED:

  • 5 CFM @ 80 PSI

AIR POSTFLOW:

  • 0 to 60 seconds

WEIGHT:

  • 34 pounds

SPECIFICATIONS TABLE

Parameter CUT60
Inverter type

MOSFET
Input voltage 1 phase AC, 110V +/- 15% 1 Phase AC, 220V +/- 15%
Input frequency 50/60Hz 50/60Hz

Input connector type

Pre-wired for NEMA 6-50P

*adapter provided for

NEMA 6-50 to NEMA 5-15

(for 220V or 110V operations)

5-15P NEMA

*See note

 6-50P NEMA
Rated input current

43

48.6
Rated output voltage

92

104
Rated output current

20-30

20-60
No-Load voltage 255V
Arcing start mode Non HF style non contact start
Duty cycle

60% @ 30 A/92 V

100% @ 23A/89.3 V

60% @ 60 A/104V

100% @ 46 A/98.4V
Recommended operating air pressure 55-75 psi
Nozzle inside hole (mm) 1.1mm
Cutting thickness

1/3" (8mm)

4/5" (20mm)
CNC port yes
2T/4T yes
Air post flow timer

0-60s adjustable
Set air yes
Efficiency >=80%
Power factor 0.73
Insulation grade F
Ingress protection rating (IP) IP21
Weight 15.20 kg / 33.51 lbs
Overall dimensions 520 x 265 x 420 mm / 20.47 x 10.43 x 16.54 inches



CUT60 Dual Voltage 60-Amp Plasma Cutter Comes With:

  • Ground Clamp with 12 feet cable
  • 220v to 110v power adapter
  • CNC and Handheld Torch
  • CNC Plug
  • Cutting torch IPT60
  • User's manual



This is the Cheaper option (Hypertherm is the industry standard), so Quality may be a bit lower.
